Recently I’ve been working on a small passion project I’ve been wanting to do for a while. Laika is a malware written in modern C. I recently added some cool obfuscation features to the LaikaBot target. Let’s take a look at how it works.
Rough Idea
I’m sure you’ve seen this before, malware authors love to obfuscate strings using various techniques, among those are the classic xor obfuscation. I hesitate to call it ‘encryption’ given it’s numerous pitfalls, however it’s extremely simple to implement so I’ll be focusing on this one technique. The rough implementation is to xor a string, and deobfuscate it during runtime. This looks something like:
uint8_t data = {0x96, 0xBB, 0xB2, 0xB2, 0xB1, 0xFE, 0x89, 0xB1, 0xAC, 0xB2, 0xBA, 0xFF, 0xDE};
char out[sizeof(data)];
for (int i = 0; i < sizeof(data); i++) {
out[i] = data[i] ^ 0xDE; // 0xDE is our key
}
printf("%s\n", out);
Hello World!
While this works for obfuscating the strings from static dumping using something like strings, any RE who sees this will immediately understand what it’s doing and dump the string quickly and without much thought. What if there was a more challenging way to obfuscate that for loop?
Mini VM
What if, we had a mini VM interpreter inlined into the function? This would become a mess in the pseudo-code of disassemblers like IDA or Ghidra. Thats exactly what Laika does! Checkout the tiny turing-complete vm here. TLDR: We can implement tiny programs for the mini-vm to run, including our xor deobfuscation!
The program blob looks something like:
/* BOX_SKID decodes null-terminated strings using a provided xor _key. aptly named lol */
#define LAIKA_BOX_SKID(_key) { \
.unlockedData = {0}, /* reserved */ \
.code = { /* stack layout: \
[0] - unlockedData (ptr) \
[1] - data (ptr) \
[2] - key (uint8_t) \
[3] - working data (uint8_t) \
*/ \
LAIKA_MAKE_VM_IAB(OP_LOADCONST, 0, LAIKA_BOX_UNLOCKED_INDX), \
LAIKA_MAKE_VM_IAB(OP_LOADCONST, 1, LAIKA_BOX_DATA_INDX), \
LAIKA_MAKE_VM_IAB(OP_PUSHLIT, 2, _key), \
/* LOOP_START */ \
LAIKA_MAKE_VM_IAB(OP_READ, 3, 1), /* load data into working data */ \
LAIKA_MAKE_VM_IABC(OP_XOR, 3, 3, 2), /* xor data with key */ \
LAIKA_MAKE_VM_IAB(OP_WRITE, 0, 3), /* write data to unlockedData */ \
LAIKA_MAKE_VM_IA(OP_INCPTR, 0), \
LAIKA_MAKE_VM_IA(OP_INCPTR, 1), \
LAIKA_MAKE_VM_IAB(OP_TESTJMP, 3, -17), /* exit loop on null terminator */ \
OP_EXIT \
} \
}
This is also here in the repository
The program is a lot simpler than it looks, lets take it apart.
LAIKA_MAKE_VM_IAB(OP_LOADCONST, 0, LAIKA_BOX_UNLOCKED_INDX), \
LAIKA_MAKE_VM_IAB(OP_LOADCONST, 1, LAIKA_BOX_DATA_INDX), \
LAIKA_MAKE_VM_IAB(OP_PUSHLIT, 2, _key), \
This bit just loads constants onto the virtual machine stack. LAIKA_BOX_UNLOCKED_INDEX & LAIKA_BOX_DATA_INDX are just reserved constant indexes for storing the input & output pointers. This lets our tiny program read/write to arbitrary memory. The OP_PUSHLIT instruction pushes a byte to the stack from the code, this one pushes our passed _key byte to the stack from our macro.
/* LOOP_START */ \
LAIKA_MAKE_VM_IAB(OP_READ, 3, 1), /* load data into working data */ \
LAIKA_MAKE_VM_IABC(OP_XOR, 3, 3, 2), /* xor data with key */ \
LAIKA_MAKE_VM_IAB(OP_WRITE, 0, 3), /* write data to unlockedData */ \
This is where our ‘for loop’ starts. OP_READ loads our first byte in our obfuscated string into the 3rd stack index, OP_XOR deobfuscates the byte in-place with our key, and OP_WRITE writes it to our output buffer.
LAIKA_MAKE_VM_IA(OP_INCPTR, 0), \
LAIKA_MAKE_VM_IA(OP_INCPTR, 1), \
LAIKA_MAKE_VM_IAB(OP_TESTJMP, 3, -17), /* exit loop on null terminator */ \
OP_EXIT \
We then increment both pointers, our in & out buffers, and test if the character we just deobfuscated was a NULL terminator. If it wasn’t a NULL terminator we jump all the way back to LOOP_START, if it was we exit out of our vm.
Generating the blobs
Now what if we want to change the strings? That’s a lot of manual labor in regenerating our data blob. Luckily for us, Laika also has a solution for that! The VMBoxGen target reads our configured strings and generates a header file for our data-blobs before everything is compiled.
The strings the VMBoxGen target uses are from our lconfig.h file, which in turn is generated before compilation using cmake:
message(STATUS "Building config file...")
configure_file(${CMAKE_SOURCE_DIR}/lib/include/lconfig.h.in ${CMAKE_SOURCE_DIR}/lib/include/lconfig.h)
After our VMBoxGen target is built, it generates our lboxconfig.h header with all of our data blobs and keys.
# generate the VMBOXCONFIG file
if(LAIKA_OBFUSCATE)
add_custom_command(TARGET VMBoxGen POST_BUILD
COMMAND VMBoxGen ${LAIKA_VMBOXCONFIG}
COMMENT "Generating VMBox data & keys.."
)
endif ()
So our library will always have access to both the obfuscated and deobfuscated raw strings. Hooray for CMake!
In practice
Let’s re-write our program to take advantage of our SKID_BOX and mini-vm interpreter.
#include <stdio.h>
#include <string.h>
#include "lvm.h"
#include "lbox.h"
/* VM BOX Demo:
A secret message has been xor'd, the BOX_SKID is used to decode the message.
*/
#define VMTEST_STR_DATA { \
0x96, 0xBB, 0xB2, 0xB2, 0xB1, 0xFE, 0x89, 0xB1, \
0xAC, 0xB2, 0xBA, 0xFF, 0xDE, 0x20, 0xEA, 0xBA, /* you can see the key here, 0xDE ^ 0xDE is the NULL terminator lol */ \
0xCE, 0xEA, 0xFC, 0x01, 0x9C, 0x23, 0x4D, 0xEE \
};
int main(int argv, char **argc) {
LAIKA_BOX_STARTVAR(char*, str, LAIKA_BOX_SKID(0xDE), VMTEST_STR_DATA)
printf("%s\n", str);
LAIKA_BOX_ENDVAR(str)
return 0;
}
The LAIKA_BOX_STARTVAR & LAIKA_BOX_ENDVAR are again, implemented in lbox.h like:
#define LAIKA_BOX_STARTVAR(type, ident, box, data) \
uint8_t __data##ident[LAIKA_VM_CODESIZE] = data; \
type ident; \
struct sLaikaB_box __box##ident = box; \
laikaB_unlock(&__box##ident, __data##ident); \
ident = (type)__box##ident.unlockedData;
#define LAIKA_BOX_ENDVAR(ident) \
laikaB_lock(&__box##ident);
We create our box and pass all of that to our VM handling functions (laikaB_unlock is just a wrapper to populate our default constants and execute the VM). After running we again, get our expected output.
Configurable obfuscation
We can also make some simple macros for enabling/disabling obfuscation.
#ifdef LAIKA_OBFUSCATE
# define LAIKA_BOX_SKID_START(type, ident, strmacro) \
LAIKA_BOX_STARTVAR(type, ident, LAIKA_BOX_SKID(KEY_##strmacro), DATA_##strmacro)
# define LAIKA_BOX_SKID_END(ident) \
LAIKA_BOX_ENDVAR(ident)
#else /* disable obfuscations */
# define LAIKA_BOX_SKID_START(type, ident, strmacro) \
type ident = strmacro;
# define LAIKA_BOX_SKID_END(ident) ((void)0) /* no-op */
#endif
In action, we use it like so:
/* mark that laika is currently running */
void laikaB_markRunning() {
LAIKA_BOX_SKID_START(char*, filePath, LAIKA_LIN_LOCK_FILE);
/* create lock file */
if ((laikaB_lockFile = open(filePath, O_RDWR | O_CREAT, 0666)) == -1)
LAIKA_ERROR("Couldn't open file lock '%s'! Another LaikaBot is probably running.\n", filePath);
/* create lock */
if (flock(laikaB_lockFile, LOCK_EX | LOCK_NB) != 0)
LAIKA_ERROR("Failed to create file lock!\n");
LAIKA_DEBUG("file lock created!\n");
LAIKA_BOX_SKID_END(filePath);
}

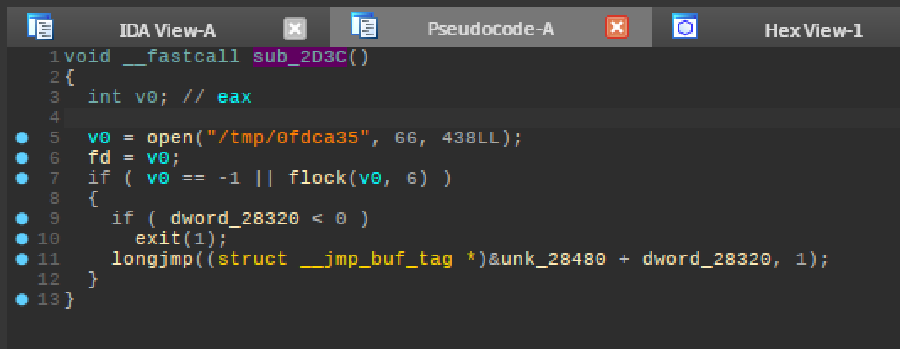

This function just marks a file lock for laika to know if another instance of laika is running. Opening this function up in IDA with -DLAIKA_OBFUSCATE=Off looks like:
The compiler of course optimized away the actual filePath variable, and changed it to a constant. Now lets compare this function with -DLAIKA_OBFUSCATE=On enabled:
You can see the whole vm was inlined into the function, this has become a mess. Of course you could always run the executable under gdb and set a breakpoint but it would definitely require more effort!
Conclusion
Obviously I left massive sections of code out to keep this brief, but of course if you’re curious about any of the code, checkout the full repo for Laika here.
